The DXR mk3 Series continues the legacy of power and premium sound established by one of Yamaha’s most celebrated loudspeaker lineups, delivering higher output, outstanding flexibility, and the level of reliability that professionals the world over depend on for their most important performances. From the painstaking selection of premium component materials, to the development of intelligent, high-performance DSP features, every aspect of the DXR mk3’s design empowers users with the capability and confidence they need for those crucial moments when your sound makes all the difference in the world.

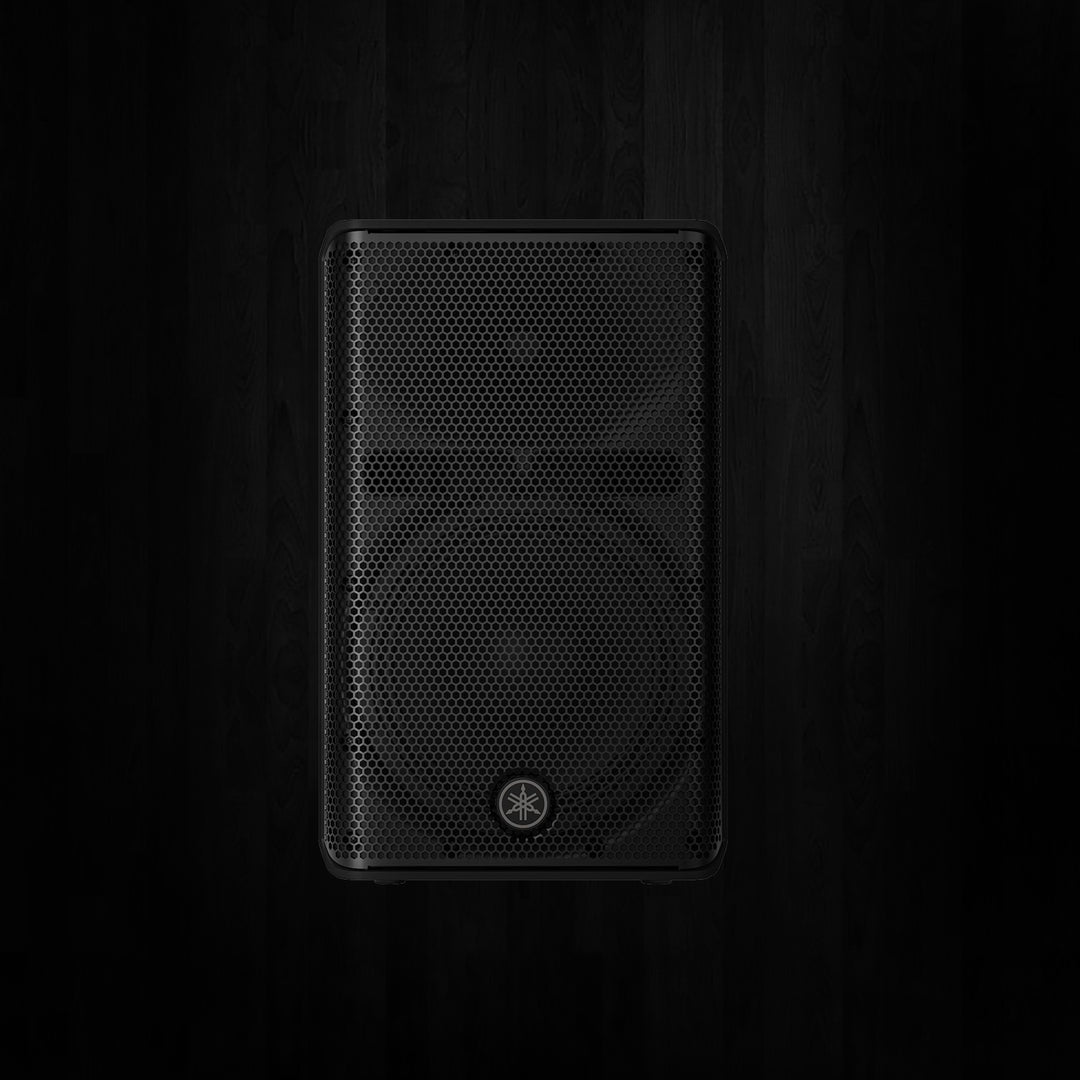

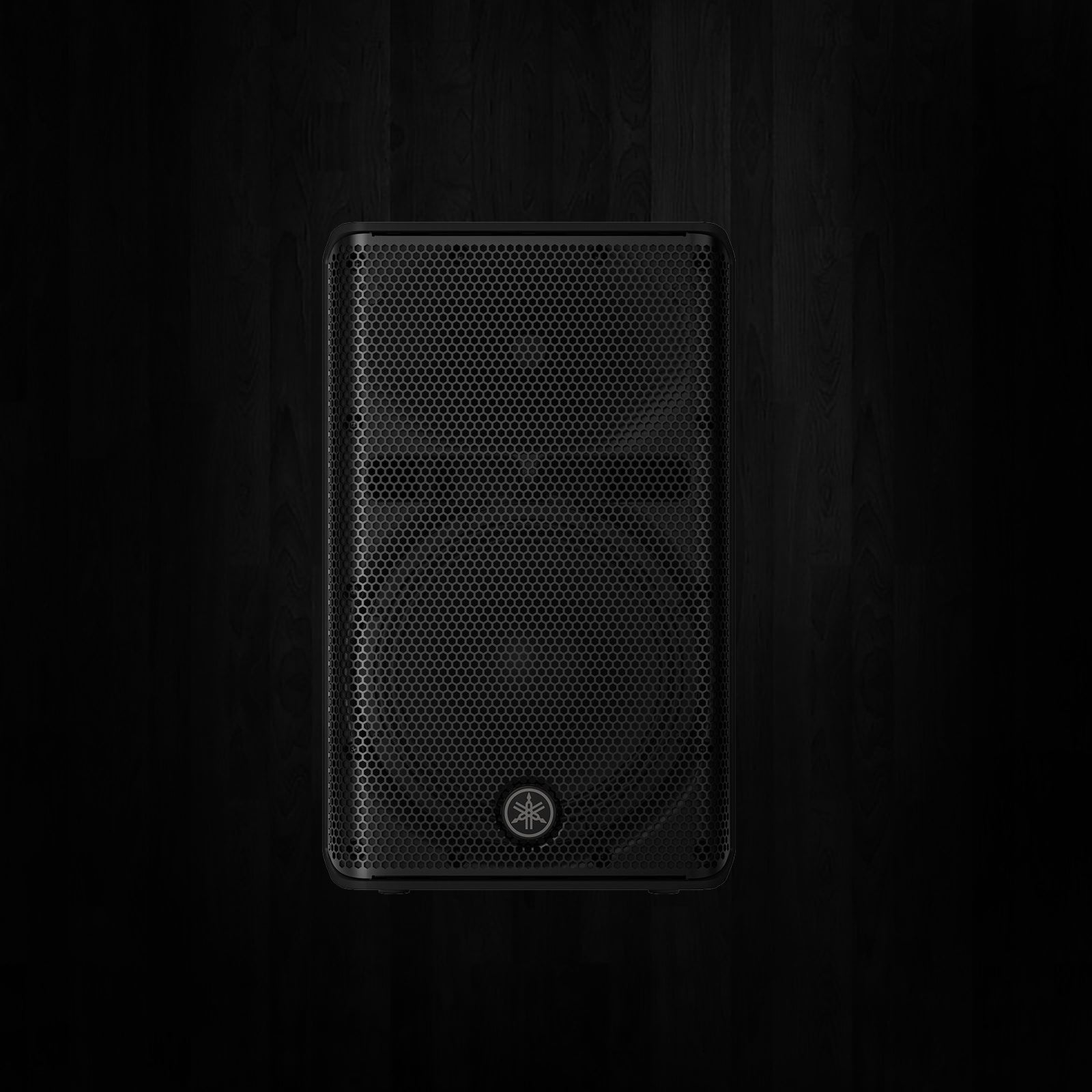

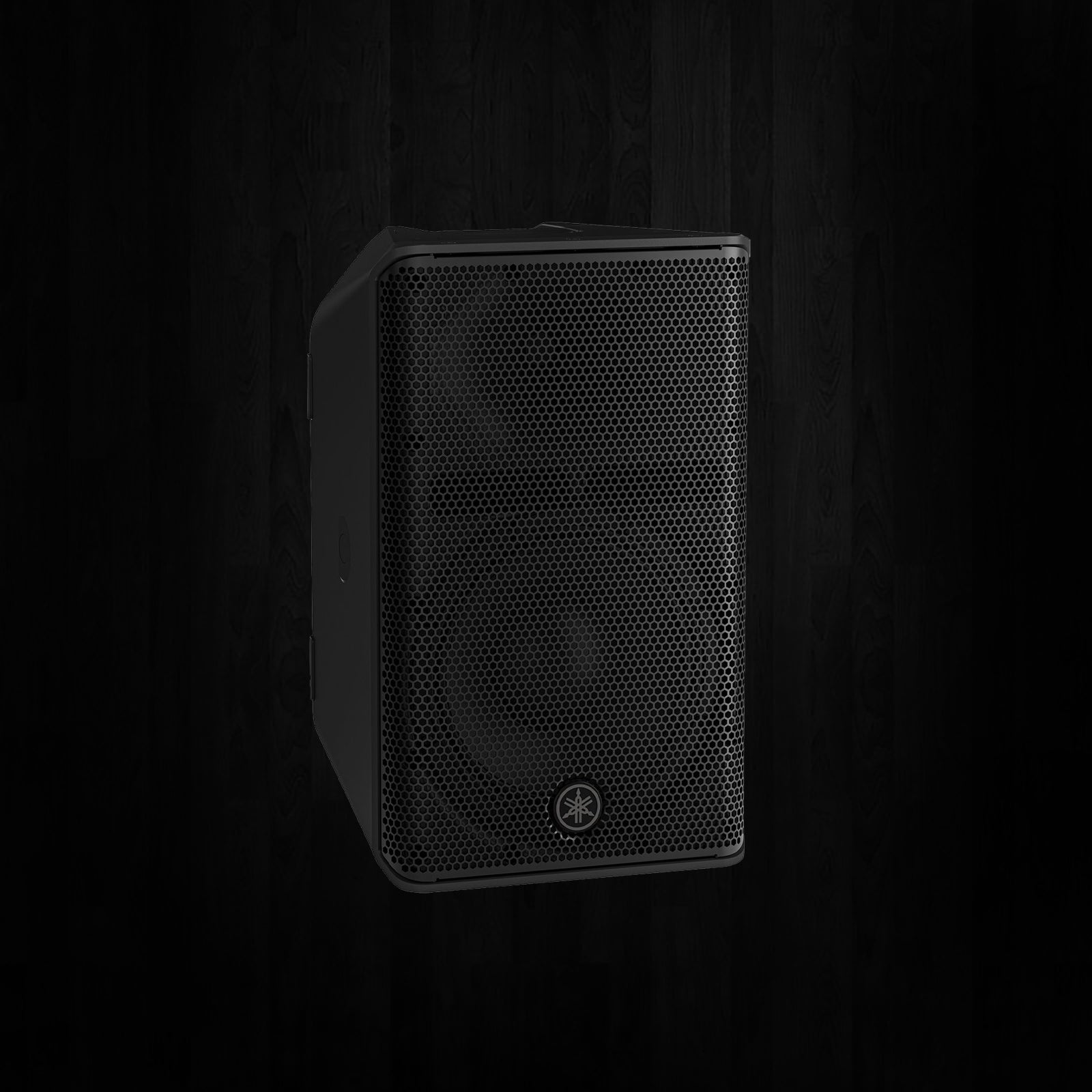

DXR10 mk3
Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 53 Hz – 20 kHz
Coverage area: H90° x V60°
Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m): 132 dB SPL
Components
- LF: Diameter 10" cone, Voice Coil 2.5"
- HF: Diaphragm 1.75", Type 1" throat compression driver
Amplifier class: Class-D
Power rating
- Peak: 2000 W (LF: 1700 W, HF: 300 W) *1
- RMS: 1000 W (LF: 850 W, HF: 150 W) *2
Cooling: Fan Cooling, 5 Speeds
Power consumption: 120 W (1/8 power), 35 W (Idle)
Power requirements: 100 V – 240 V 50/60 Hz
A/D D/A Converters: 32 bit/96 kHz Sampling
Processors: HPF: OFF, 50 Hz – 118 Hz, 12 dB – 48 dB/Oct.; DSP-MODE: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF

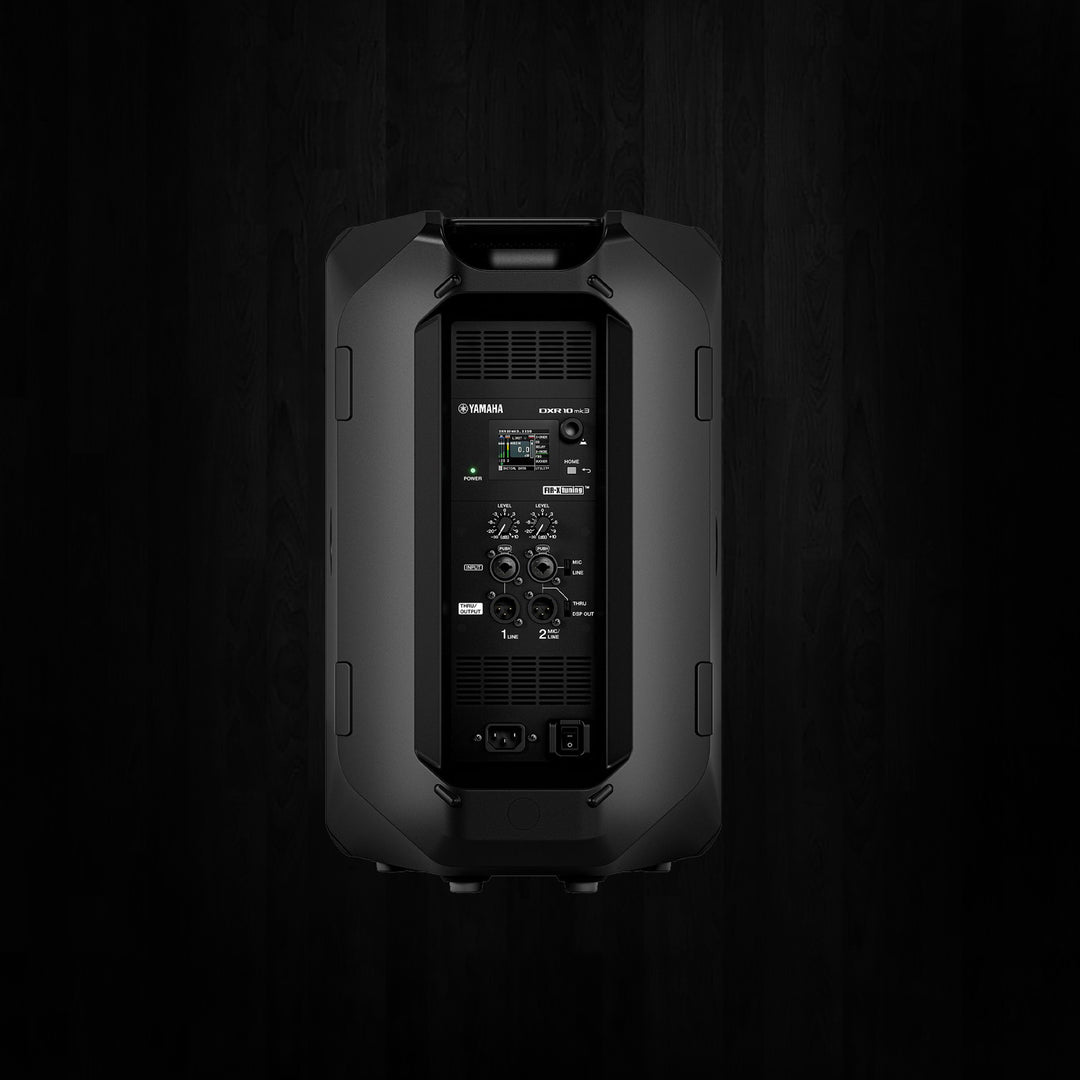

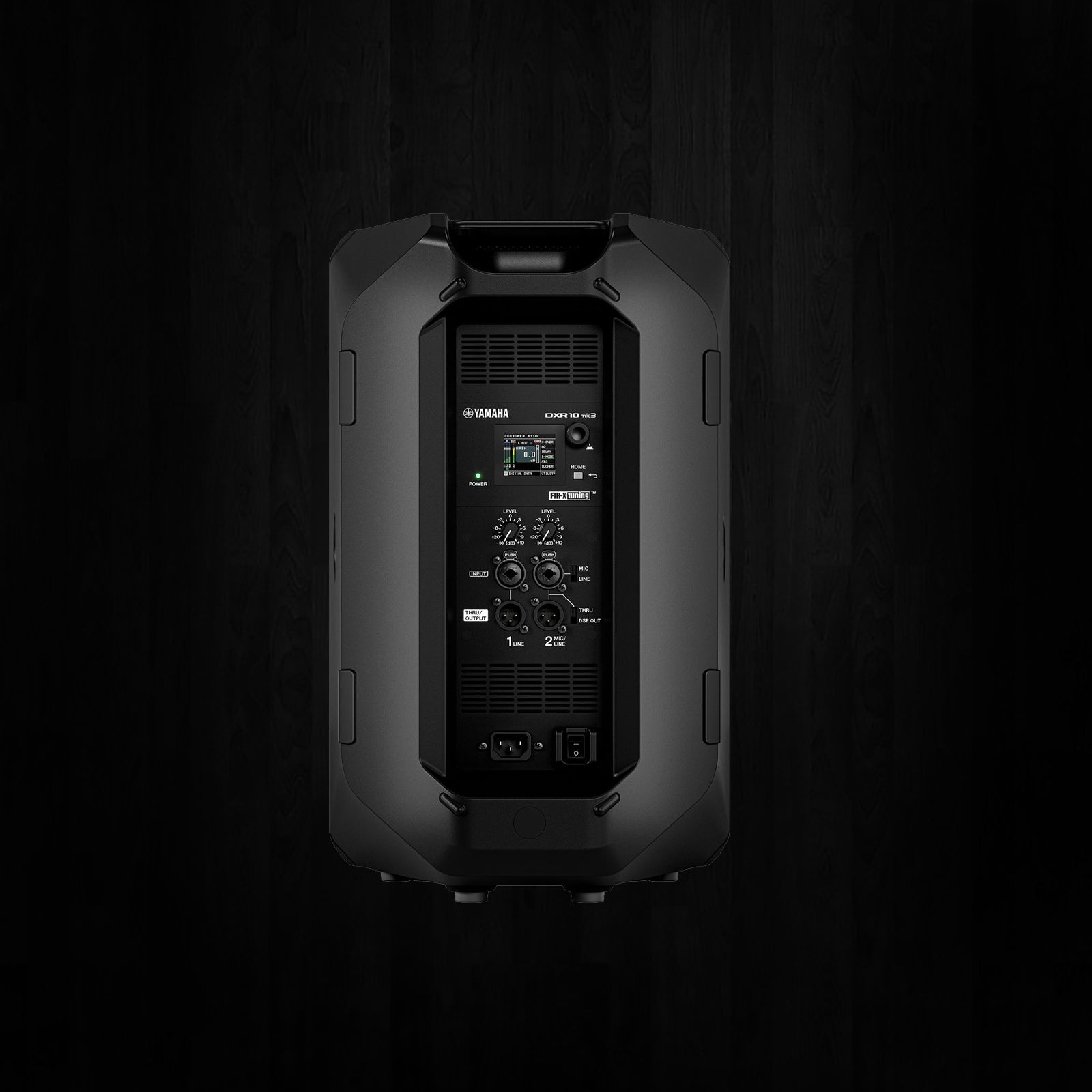

I/O Connectors
- Analog Input: INPUT1: Combo x1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Max Input Level +24 dBu; INPUT2: Combo x1, Impedance 6 kΩ (balance) 3 kΩ (unbalance), Max Input Level +24 dBu (Line) -6 dBu (Mic)
- Analog Output: OUTPUT1: XLR3-32 THRU; OUTPUT2: XLR3-32 THRU or DSP OUT
- Bluetooth: Ver. 5.0, A2DP (SBC, AAC), Class 1 *3
- Others: D-Remote (iOS/Android app)
Cabinet material: Plastic (PP)
Finish: Black
Handle: Top x1
Pole socket: Φ35 mm x2 (Bottom, 0° or -7°)
Rigging: Top x2, Rear x1 (Fit for M8 x 15 mm Eyebolts), Bottom x2, Side x2 (Fit for M8 x 25 mm UB-DXRDHR10A)
Floor Monitor Angle: 55°
Dimensions
- W: 310 mm (12.2")
- H: 502 mm (19.8")
- D: 310 mm (12.2")
Net weight: 14.5 kg (32.0 lbs)
Options: U-bracket: UB-DXRDHR10A, Cover: SPCVR-DXR103
