The MGX16 continues Yamaha’s tradition of excellence in mixing, offering a digital console that balances power, flexibility, and intuitive operation. Featuring a touch-panel GUI, physical controllers, and extensive I/O, it adapts easily to diverse applications—from live sound in cafés, clubs, halls, and houses of worship to podcasting, streaming, music production, and professional recording. Its streamlined workflow ensures fast operation without compromising sound quality, while its versatility supports a wide range of configurations. Designed for engineers, creators, and performers, the MGX16 delivers professional-level audio performance that enhances every production and engages audiences in any environment.

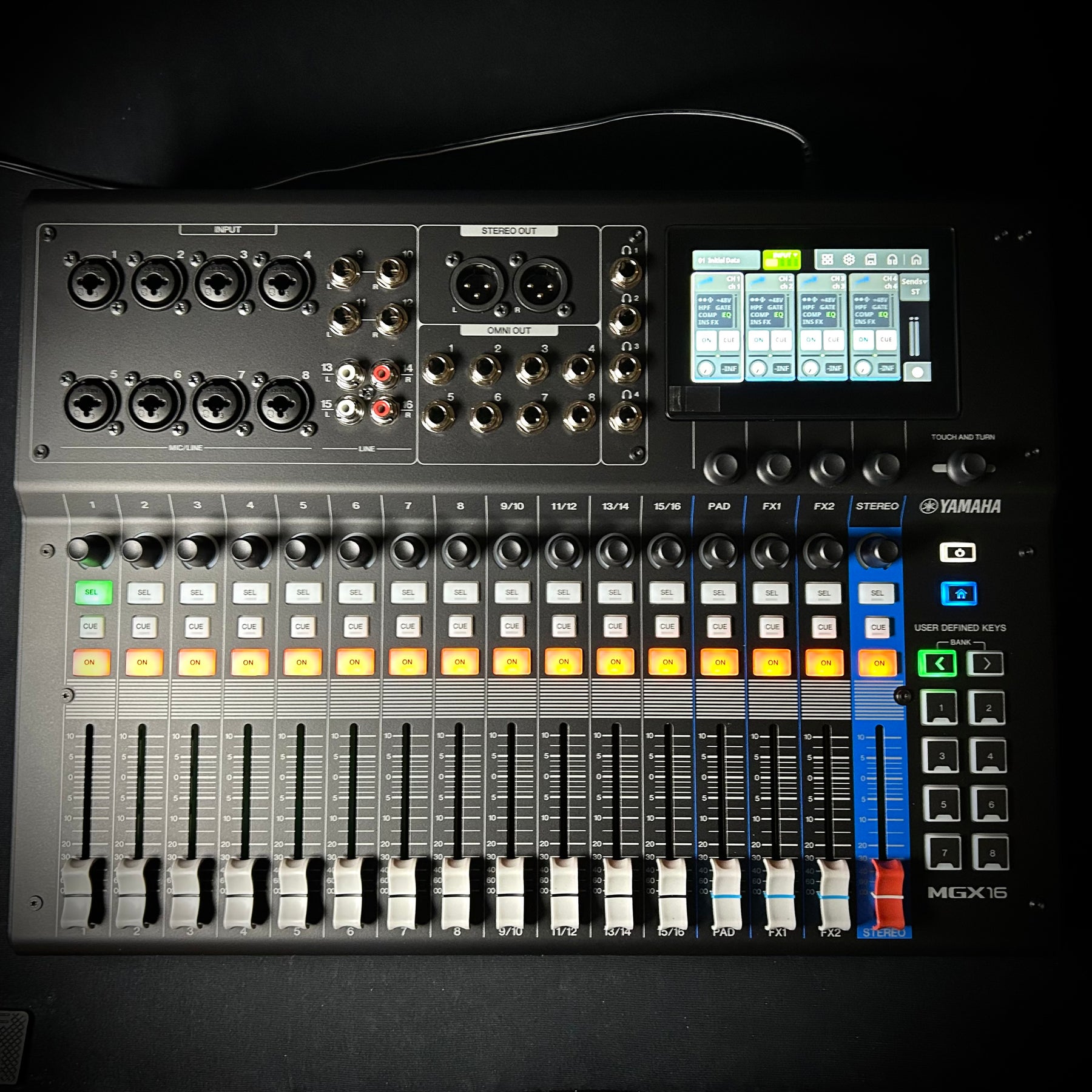

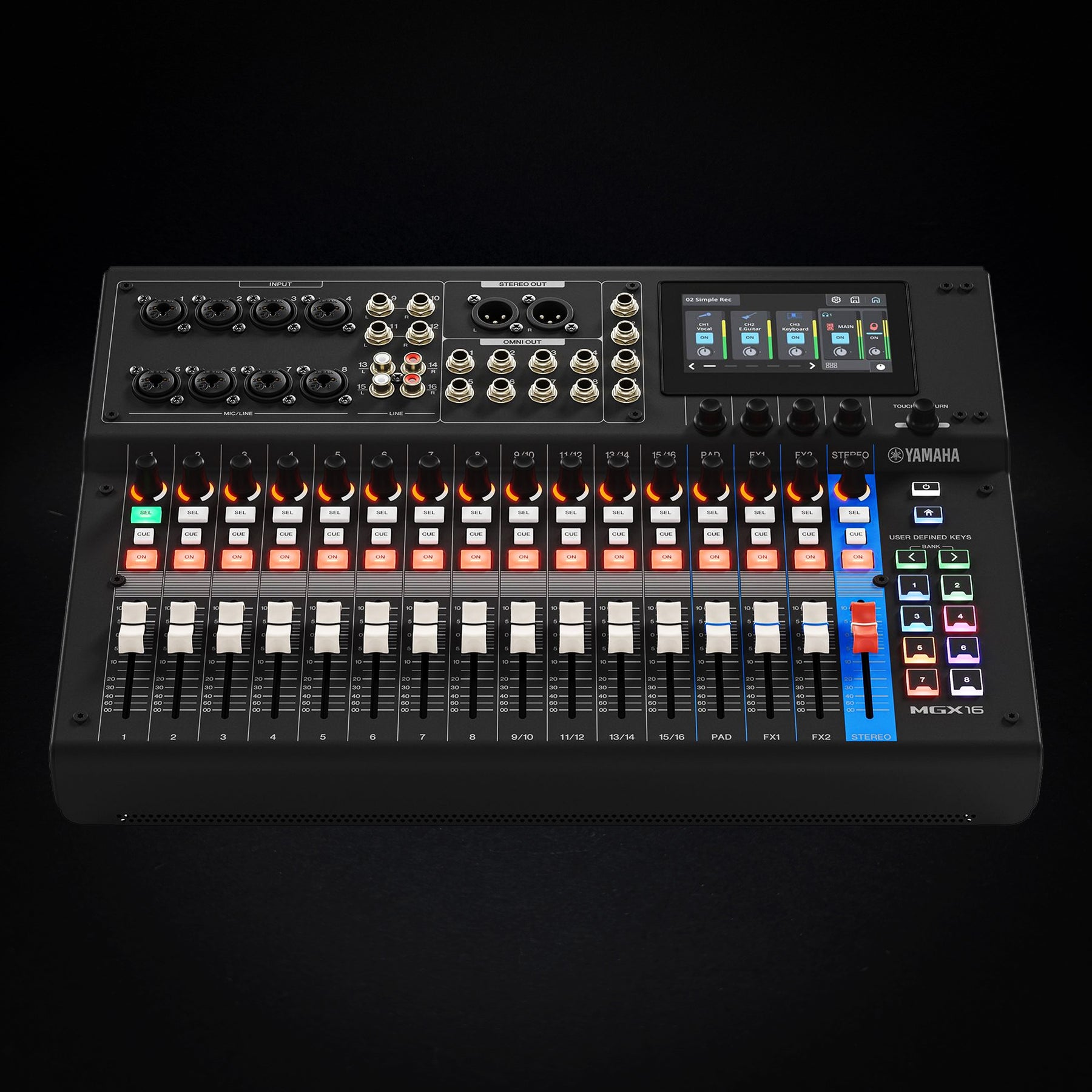

15 + 1 fader configuration (non-motorized fader)

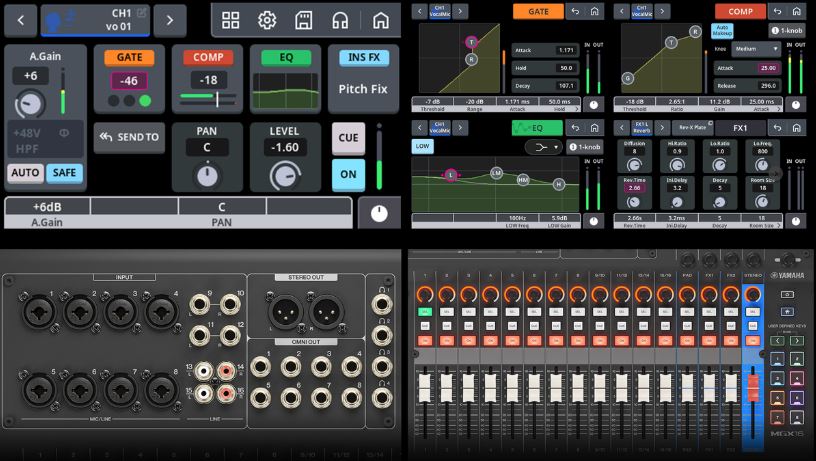

A 4.3-inch touchscreen with five control knobs
Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2FX return
Busses: 8 Mix + 2FX + 1 CUE + 1 STEREO
Local I/O: 8 Mic/Line (8 XLR/TRS Phone Combo), 8 Line (4 TRS Phone, 4 RCA) inputs, and 2 XLR, 8 TRS Phone, 4 Headphones

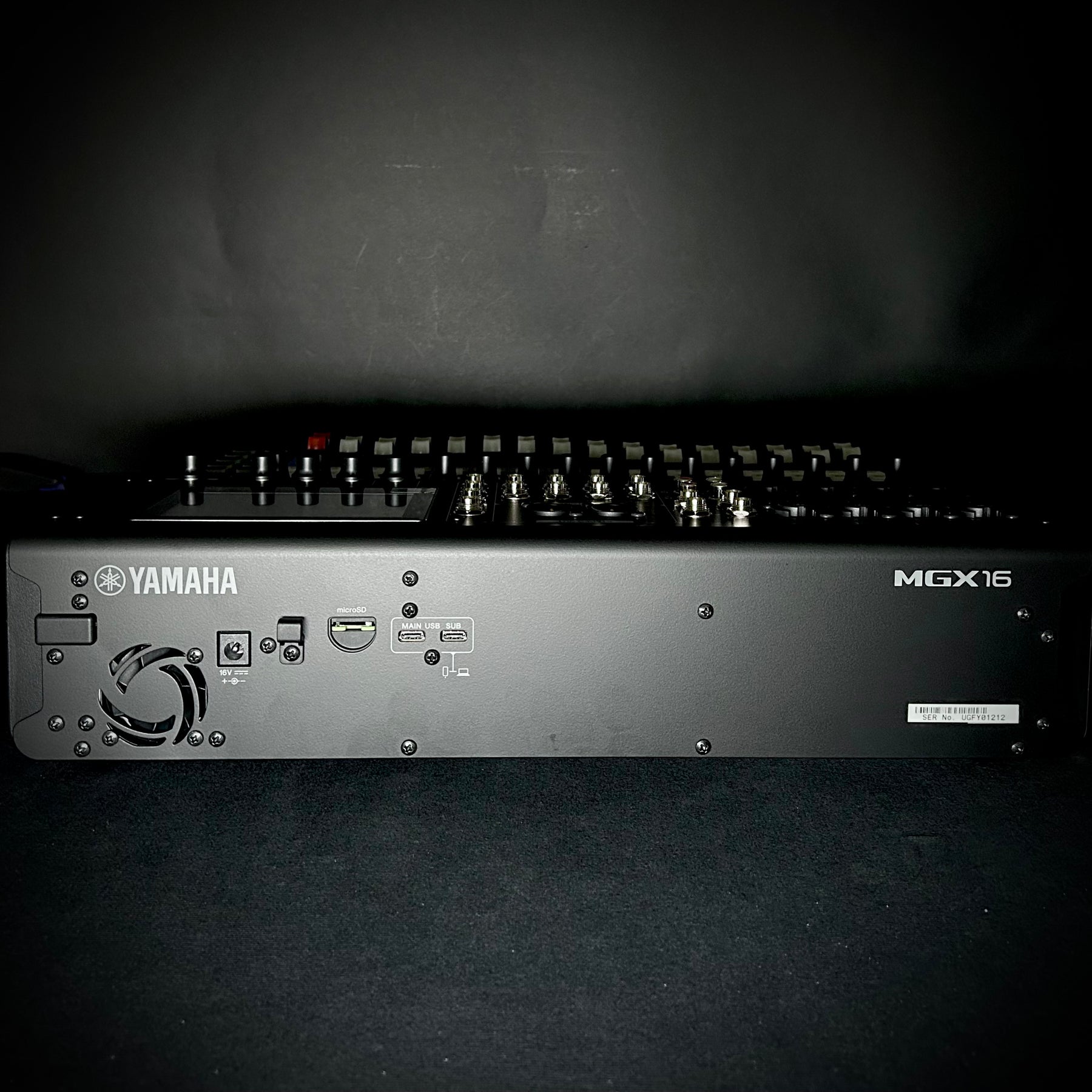

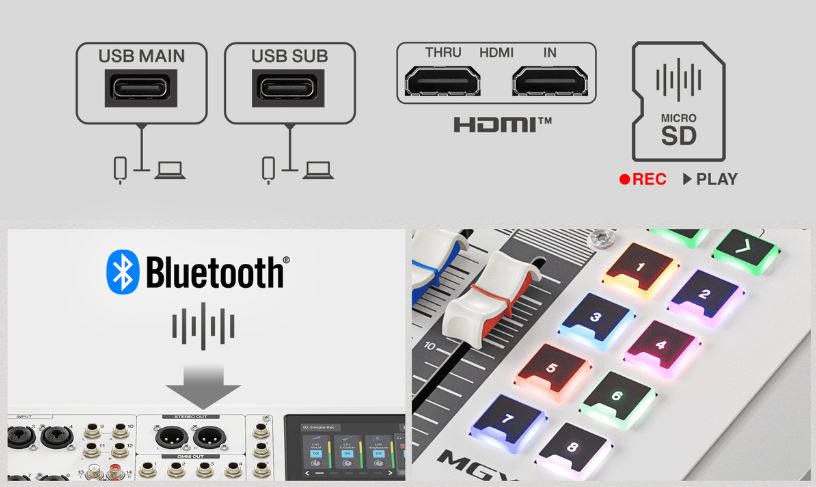

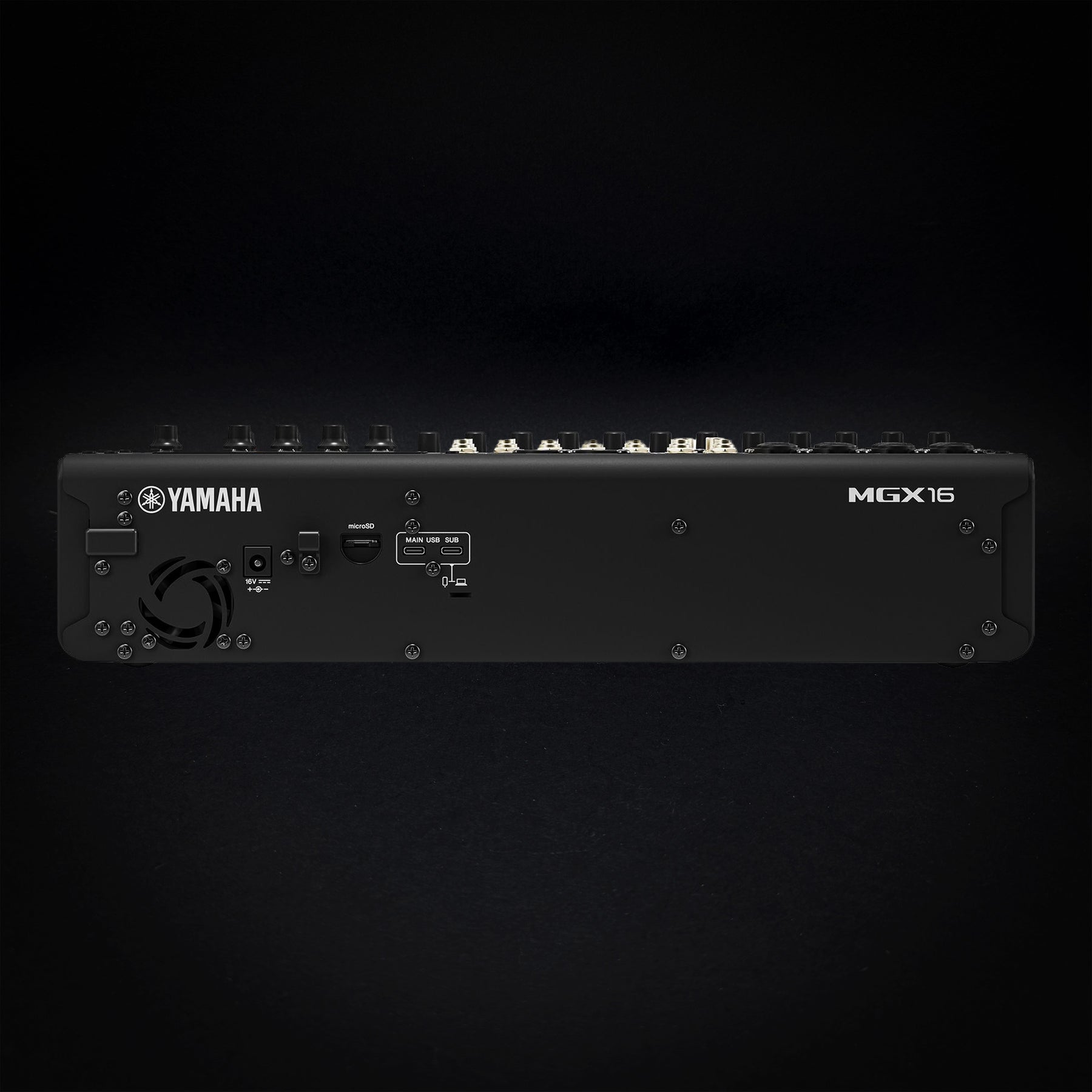

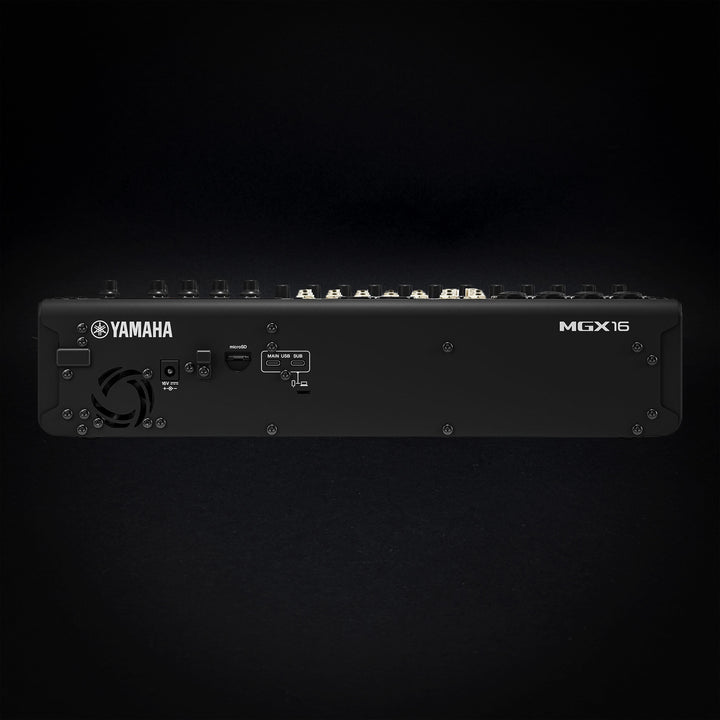

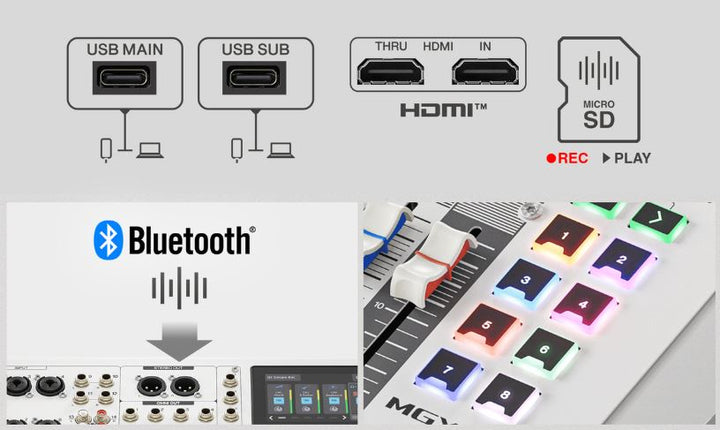

USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
USB SUB: 2 inputs / 2 outputs (16-bit / 48kHz)
Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
Built-in DSP processor for professional sound and latency-free monitoring
Assistive features: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall
Included accessories: Start Guide, Safety Guide, Steinberg Software License Card (Cubase AI, WaveLab Cast LE, Basic FX Suite, Steinberg Plus), AC Power Adapter (PA-300C)
