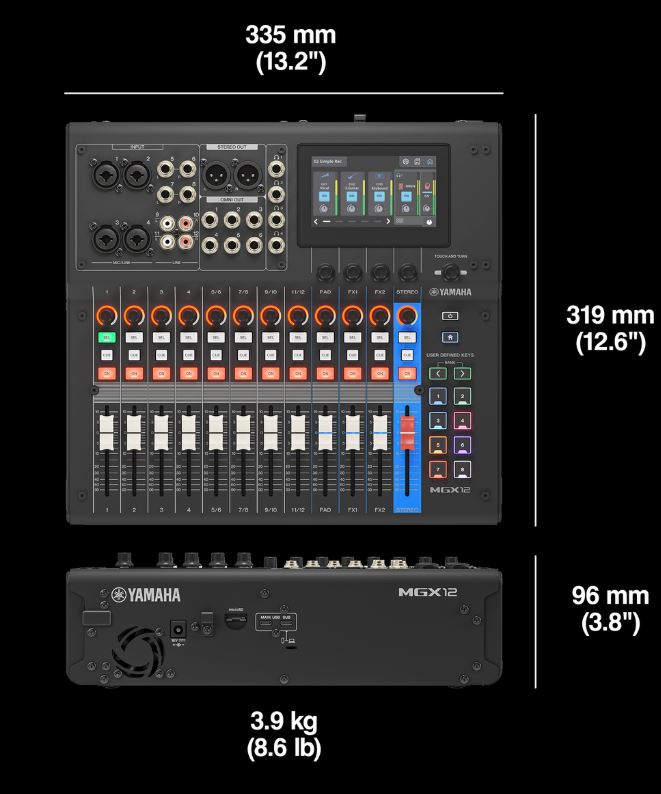

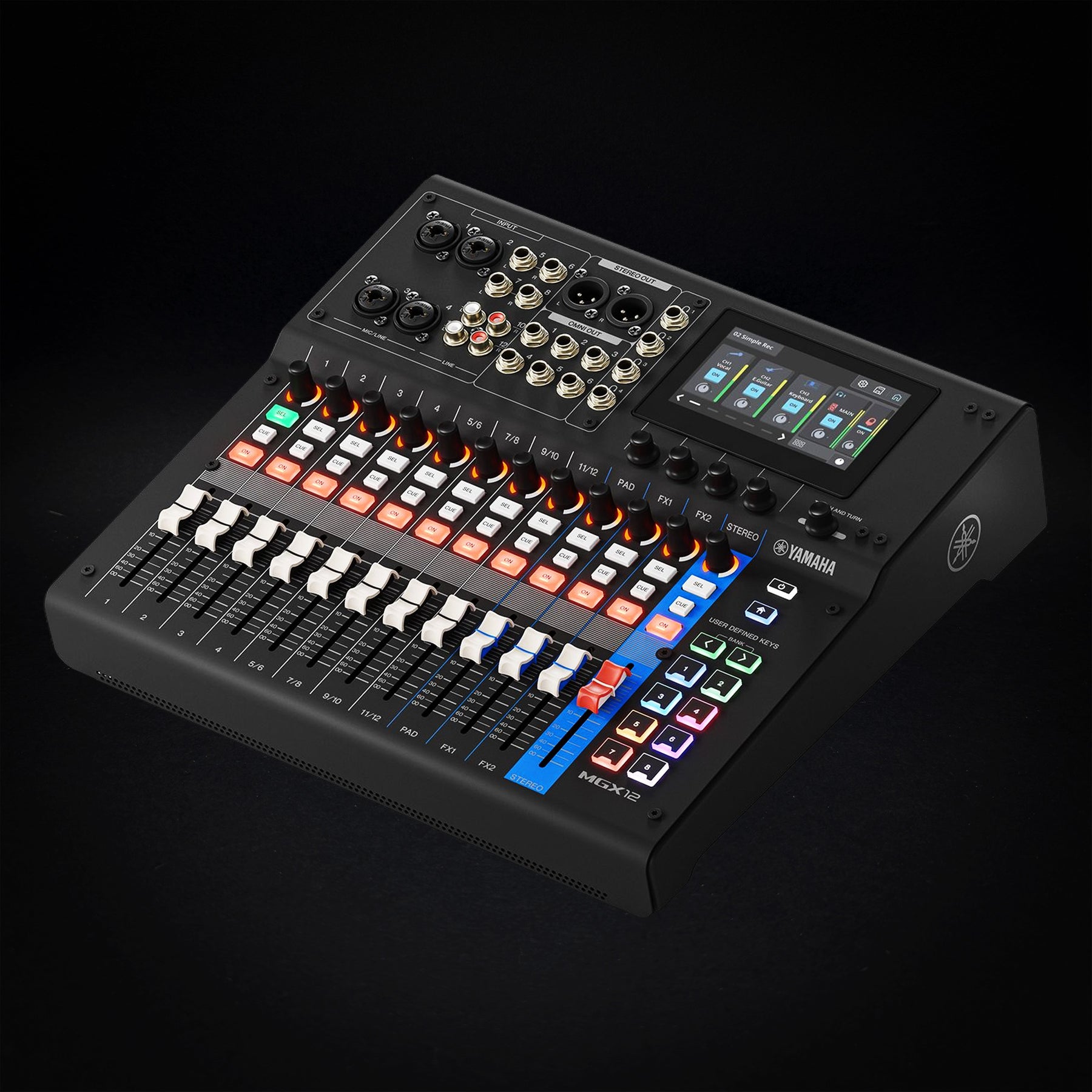

The MGX12 continues Yamaha’s MG legacy by delivering a compact digital mixing console with superb sound quality, flexible I/O, and intuitive control. Its touch-panel GUI and physical controllers allow fast, efficient operation, while extensive connectivity ensures adaptability across environments—from live sound in halls, cafés, clubs, and houses of worship to podcast streaming and professional studio recording. Designed for both creators and engineers, the MGX12 blends performance, versatility, and user-friendly operation. In every application, it delivers professional-level audio that enhances productions and captivates audiences, making it an essential tool for modern sound reinforcement and content creation.

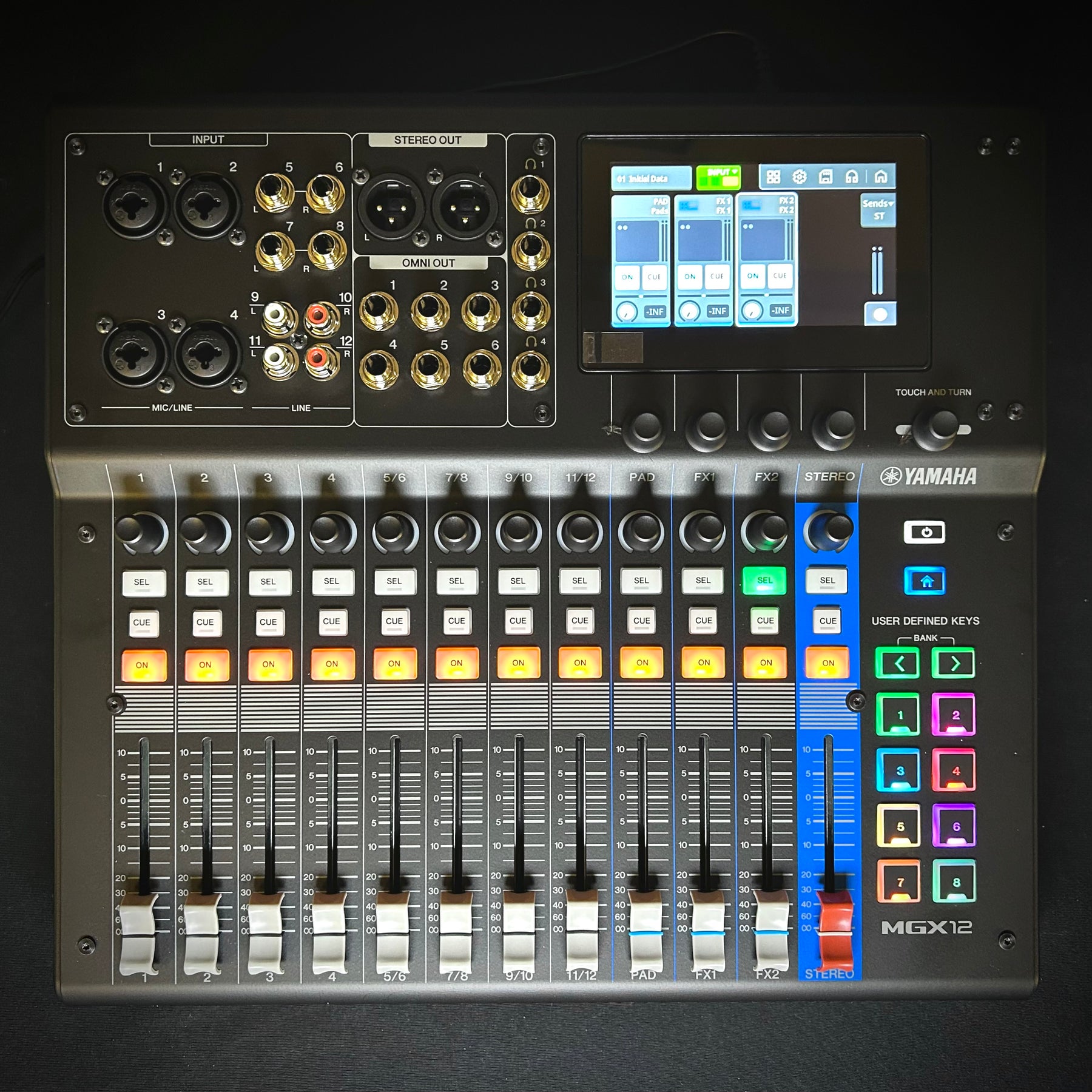

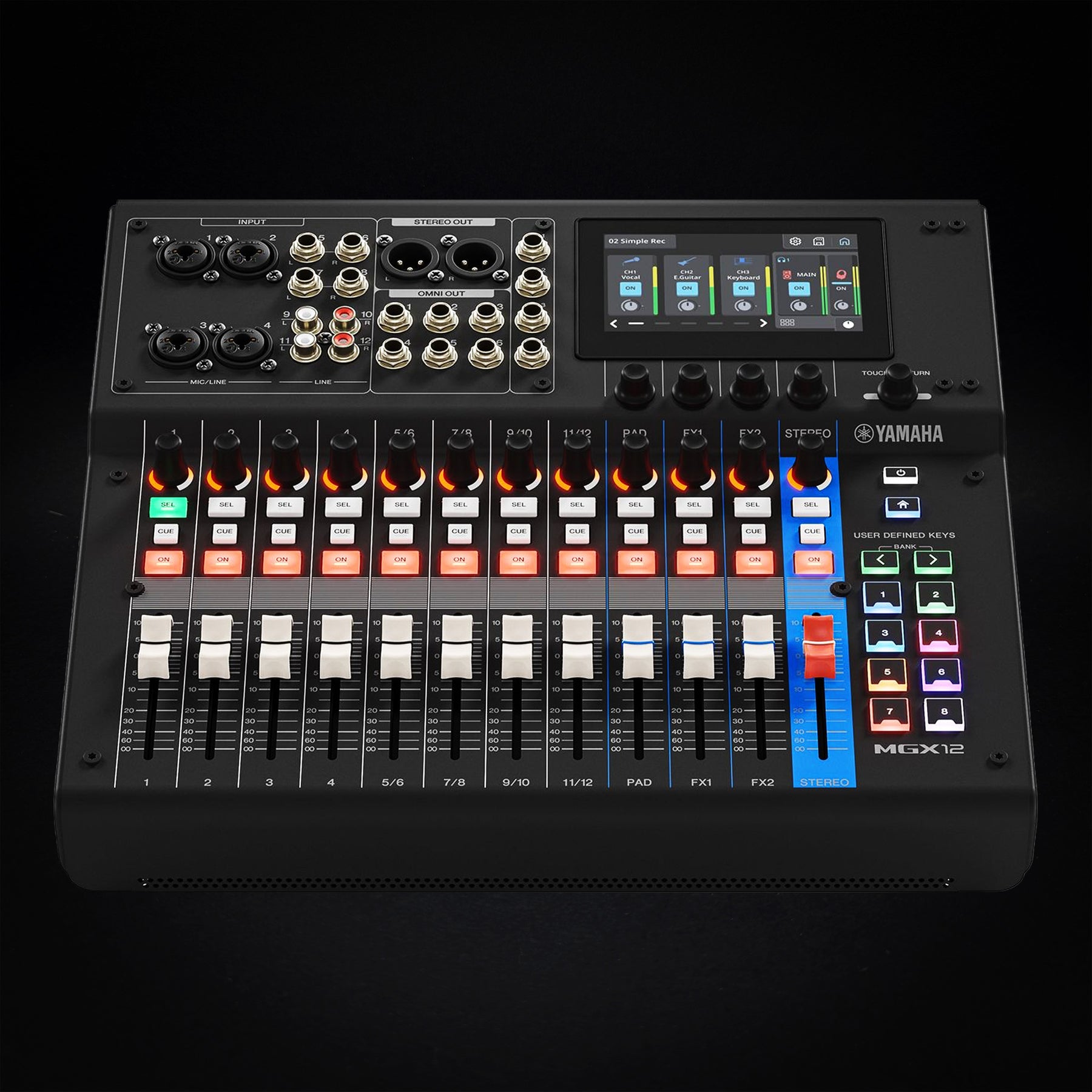

11 + 1 fader configuration (non-motorized fader)

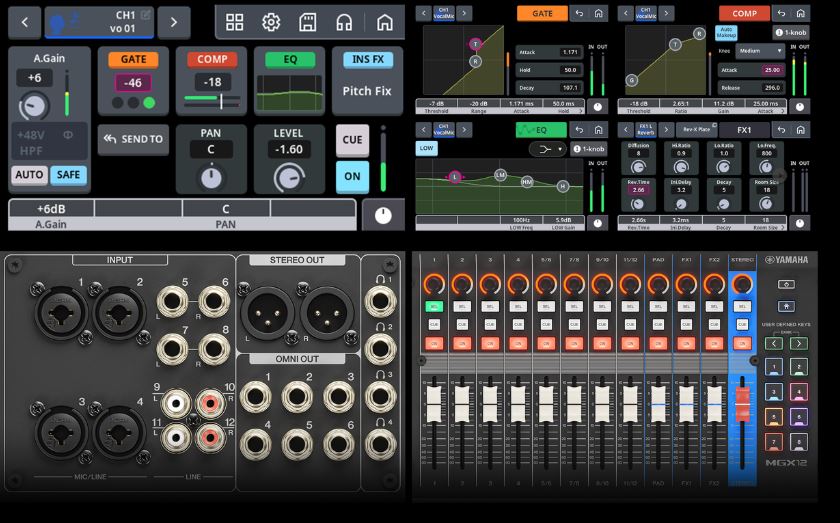

A 4.3-inch touchscreen with five control knobs
Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2FX return
Busses: 8 Mix + 2FX + 1 CUE + 1 STEREO
Local I/O: 8 Mic/Line (4 XLR/TRS Phone Combo), 8 Line (4 TRS Phone, 4 RCA) inputs, and 2 XLR, 6 TRS Phone, 4 Headphones

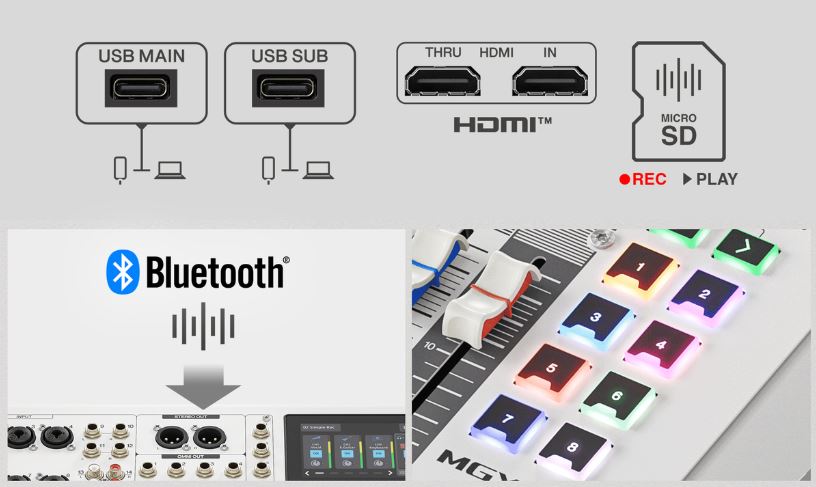

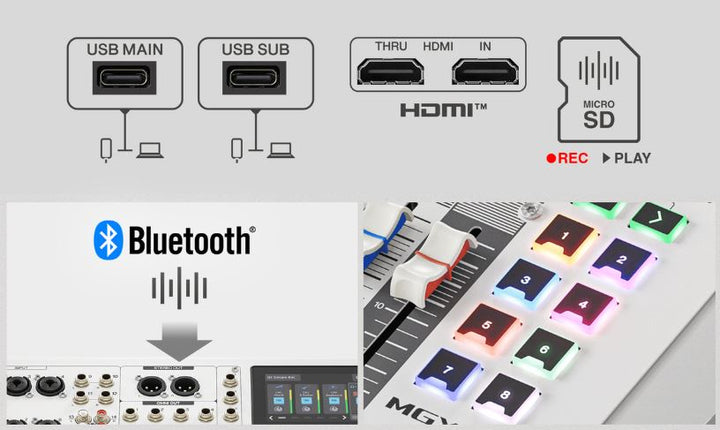

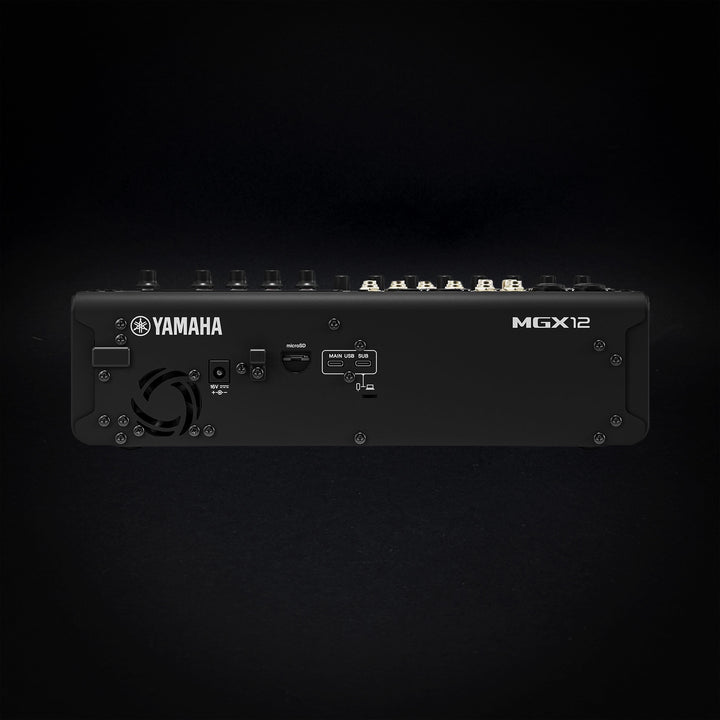

USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
USB SUB: 2 inputs / 2 outputs (16-bit / 48kHz)
Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
Built-in DSP processor for professional sound and latency-free monitoring
Assistive features: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall
Included accessories: Start Guide, Safety Guide, Steinberg Software License Card (Cubase AI, WaveLab Cast LE, Basic FX Suite, Steinberg Plus), AC Power Adapter (PA-300C)
